Description
Reliable, long‑range detection built for tough environments.

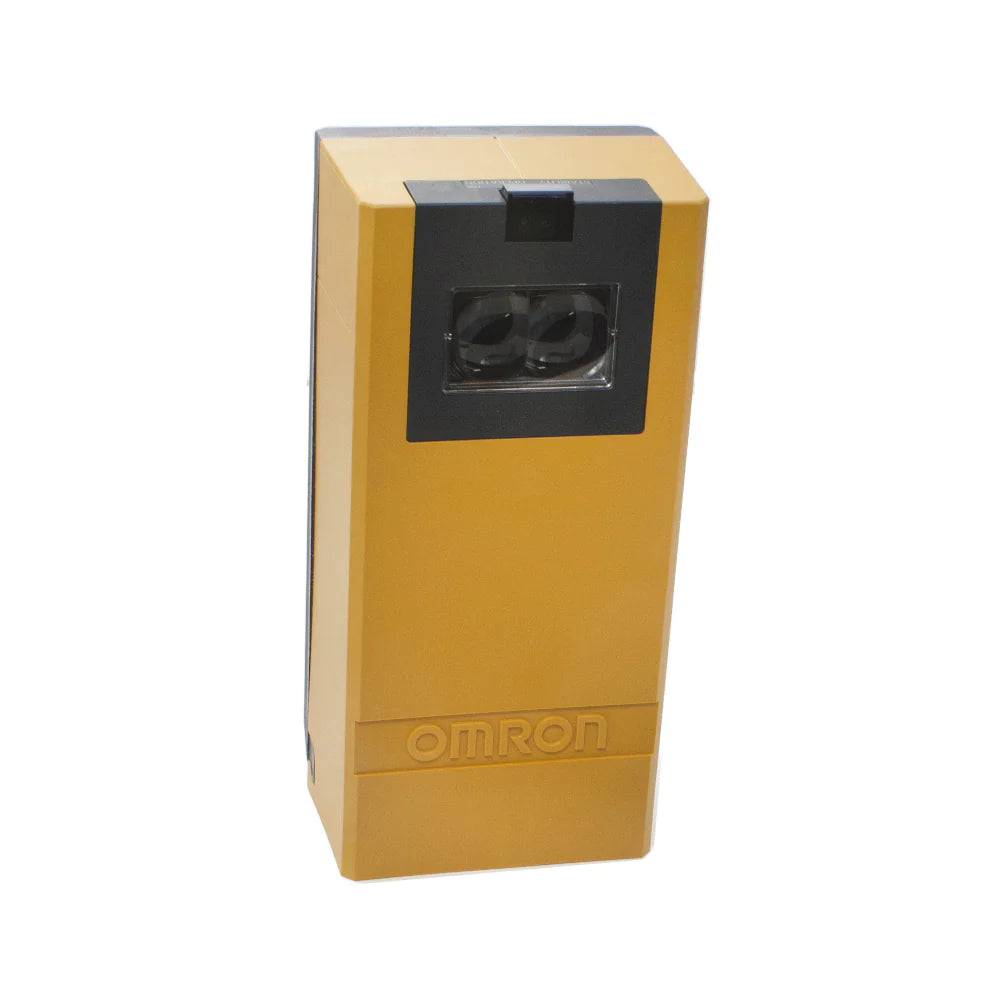

The MMTC Omron E3K Retro‑Reflective Photo Eye delivers dependable performance with a 40-foot detection range using the included 3-inch reflector. Designed for industrial gate and door applications, this sensor is UL325 compliant and housed in a NEMA 4X‑rated enclosure for maximum protection against dust, water, and harsh conditions.
Whether you’re upgrading an existing system or installing a new one, the E3K ensures precise detection and long‑term reliability in demanding environments.
Key Features
-
Long‑Range Detection – 40 ft. range with 3″ reflector for versatile applications
-
Rugged Construction – NEMA 1, 4, 4X, 12 & 13 / IP67 enclosure rating for indoor & outdoor use
-
Code Compliant – Meets UL325 safety requirements for automated doors & gates
-
Reliable Performance – Fast 30 ms response time (ON/OFF)
-
Heavy‑Duty Relay Output – DPDT relay rated at 10A, 240 VAC for robust control
-
Wide Voltage Compatibility – Operates on 24 to 240 VAC or 24 to 240 VDC
Specifications
-
Supply Voltage: 24–240 VAC / 24–240 VDC
-
Power Consumption: 10 VA maximum
-
Control Output: Heavy‑duty DPDT relay, 10A @ 240 VAC
-
Response Time: 30 ms max (ON/OFF)
-
Operating Temp: –13° to +131° F (–25° to +55° C)
-
Certifications: UL Listed, CSA Certified
